5 pin metal female gx12 connector for HYDROS command bus port

$3.30

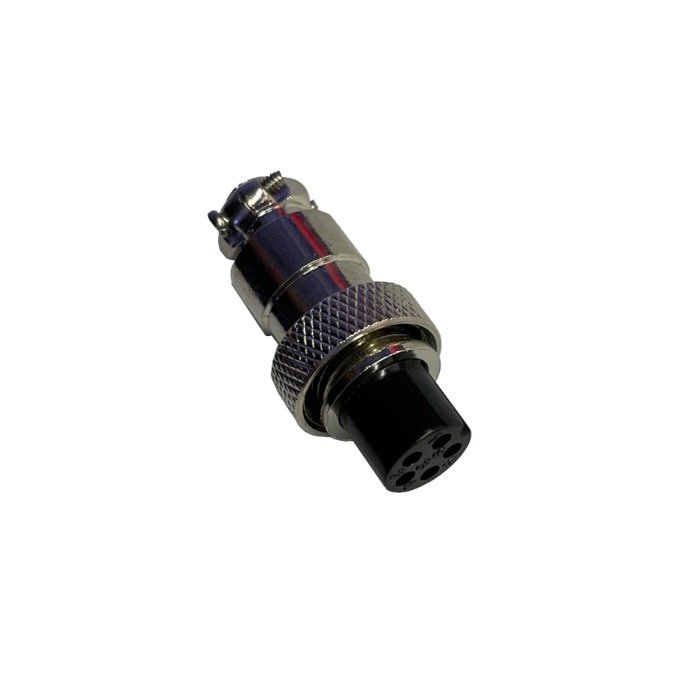

5-Pin Metal Female GX12 Connector for HYDROS Command Bus Port

Female HYDROS Connector mainly used for DIY Command Bus Port Cables.

Drive Port Pinout:

  • Pin 1: Ground

  • Pin 2: CanBus Signal H

  • Pin 3: CanBus Signal L

  • Pin 4: Ground

  • Pin 5: DC Power

Specification:

  • Pin: 5

  • Model: GX12-5

  • Contact diameter: 1.2mm

  • Contact impedance: 5MΩ

  • Insulation resistance: 1500MΩ

  • Rated current voltage: 5A-125V

  • Solder cup mouth aperture: 0.8mm

5-Pin Metal Female GX12 Connector for HYDROS Command Bus Port

Female HYDROS Connector mainly used for DIY Command Bus Port Cables.

Drive Port Pinout:

  • Pin 1: Ground

  • Pin 2: CanBus Signal H

  • Pin 3: CanBus Signal L

  • Pin 4: Ground

  • Pin 5: DC Power

Specification:

  • Pin: 5

  • Model: GX12-5

  • Contact diameter: 1.2mm

  • Contact impedance: 5MΩ

  • Insulation resistance: 1500MΩ

  • Rated current voltage: 5A-125V

  • Solder cup mouth aperture: 0.8mm
